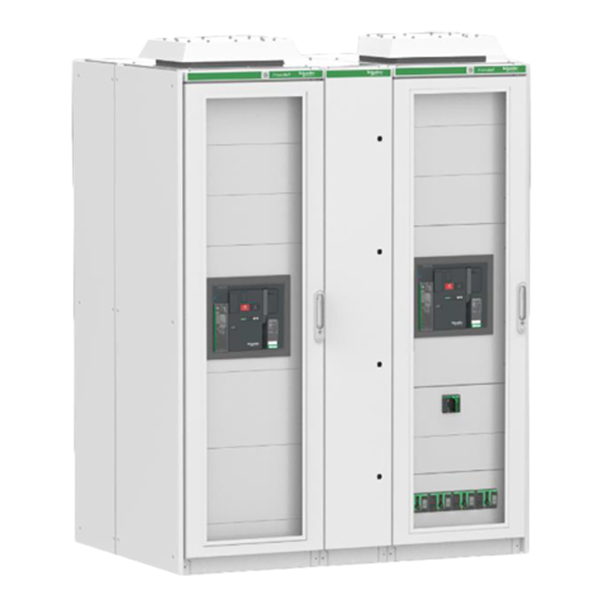

PrismaSeT (Prisma IPM)

PrismaSeT (Prisma iPM) is a licensed product of DVT which compliance with IEC 61439-1,2 up to 4000A. This product can be used for various applications such as building, industry, data center market…
Frame Height 2000 mm
Material Steel Sheet
Frame Depth 400/600 (Front), 800/1000 (Rear)
Frame Width 600 and 800 mm
Width of Busbar Duct 200 (for width of 800mm)
Width of Cable Duct 300 and 400
Partitioning Form 1, 2, 3b và 4b
IP 30/31/54
IK 07/08/10
Catalogue Electric cabinets Prisma iPM
Liên hệ

(028) 7300 0296

info@datvinhtien.vn

Product Information
Standard IEC 61439-1
Rated Insulation Voltage Ui (V AC)  1000
Rated Operational Voltage (V AC)  690
Rated Impulse Withstand Current (kV)  12
Rated Frequency (Hz)  50/60
Rated Current max.le (A)  4000
Rated Short-time Withstand Current Icw (kA/1s)  100
Rated Impulse Peak Voltage Ipk (kA)   220
 Earthing System  TNC, TNS, IT, TT
